Probe Installation
I/O PCB Skip connector (P22) pinout

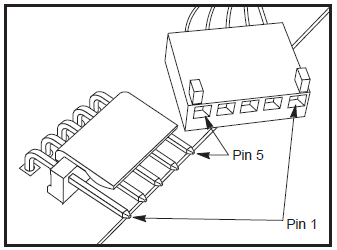

Source: HAAS Electrical Manual 2006 Pg. 37
Between the HAAS manual and testing, the following pinouts were determined for 4-pin Molex KK connector (P22) on the I/O PCB.

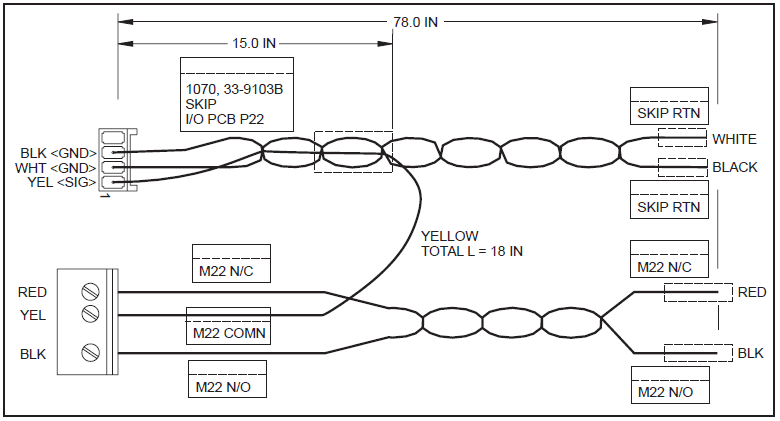

Source: HAAS Electrical Manual 2006 Pg. 89
Source: HAAS Electrical Manual 2006 Pg. 37
Between the HAAS manual and testing, the following pinouts were determined for 4-pin Molex KK connector (P22) on the I/O PCB.
| Pin | Description |
| 1 | Signal |
| 2 | GND |
| 3 | GND |
| 4 | 12 VDC |
Source: HAAS Electrical Manual 2006 Pg. 89
